Jands 4PAK-D

Jands 4PAK-D

This product has been discontinued. Reach out to our friendly team to discuss great alternatives to this item.

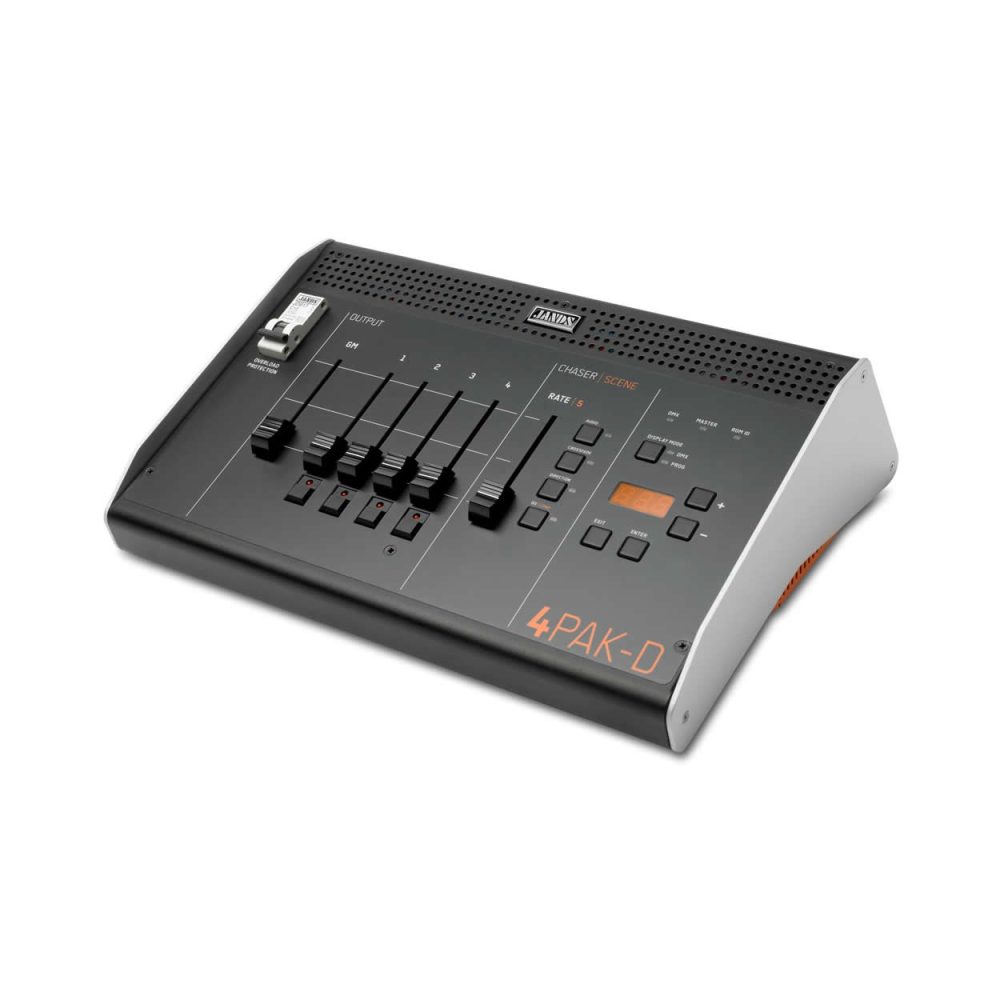

The Jands 4PAK-D integrates an enhanced four channel multi-scene/chaser control desk, dimmer and interconnecting cables into a single, easy to use economical unit. Additionally a DMX-512 input allows the 4Pak-D to be used as a slave dimmer from an external DMX control source.

The 4PAK-D is suitable for use in a variety of situations including stage lighting for schools, bands and theatre groups, effects switching for mobile applications and the control of shop window, foyer, or trade show displays. A built-in microphone enables the chaser to be triggered from ambient audio with no external connections.

The 4PAK-D comes with a captive supply cable and overcurrent circuit breaker. Each channel is rated for the full breaker current.

Features:

  • Four (4) identical control channels may be controlled via the front panel or remotely by DMX
  • A fader and flash button per channel for manual control
  • A mimic LED per channel provides visual indication of each channel’s output at all times
  • High brightness LED display
  • Easy to use menu-based setup
  • Predefined and user programmable chases
  • User programmable scenes
  • ANSI E1.11-2004 DMX-512-A digital control input
  • ANSI E1.20-2006 RDM compliant
  • “Signal” LED for DMX signal indication
  • Link capability for expanded operation
  • Four (4) output circuits set for linear relationship between the control input and output power
  • Opto-fired high current Triac output devices
  • Master over-current thermal-magnetic circuit breaker
  • Supplied complete with captive 1.7m lead and plug
  • Connections to the lights are made via four (4) standard outlets on the back panel
  • Durable polyester front panel decal
  • Integral carry handle

Additional information

Weight 4.5 kg
Dimensions 265 × 344 × 105 mm
Manufacturer

Jands

Channels

4
