Luminex GigaCore 20t POE++

Luminex GigaCore 20t POE++

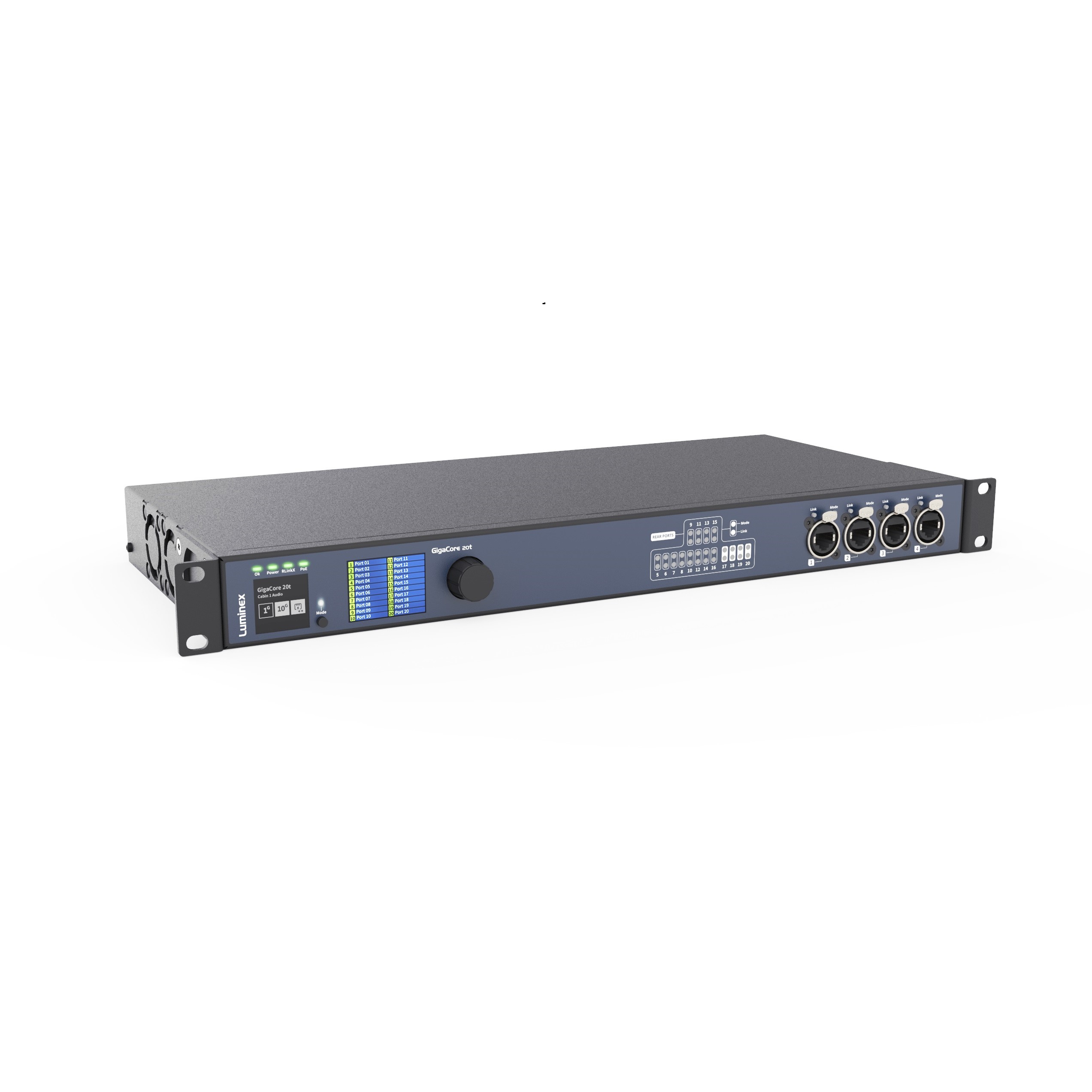

Having a robust, reliable network backbone has become an essential component of many AV systems. Resolution X has invested in the Luminex GigaCore series of switches, which are specifically designed with professional touring applications in mind. The GigaCore 20t is a 10 Gigabit Ethernet switch designed to support multiple AV protocols co-existing on the same network. It is equipped with PoE++ on every copper port (16 in total), up to a maximum of 1000W.

Each switch comes with a custom ResX Patch Panel, so all 16x copper ports have etherCON connections easily accessed from the front of the unit, as well as 4x opticalCON Fibre ports.

Manage and monitor the entire network with Araneo software which shows the current status of each device, as well as a visual representation of data streams and topology of port status of every GigaCore. The entire network can be configured offline, reducing commissioning time and saving money and stress on-site.

There is also an intuitive web UI which allows you to assigning groups (VLANs) to ports, create trunks or adjusting other port and PoE settings on the fly.

Tech Specs:

  • PoE: PoE++ on every copper port – 802.3af, 802.3at and 802.3bt are all met.
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
  • MAC address table: 16384 entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 112Gbps
  • Jumbo frames: MTU up to 12000
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
  • Manufacturer tested interoperability and application validation for NDI™, Dante™, AES67, ART-NET, MA-Net, sACN and many more.

Documentation

Find all the documentation you need regarding this product below.

Luminex GigaCore 20t POE++
