MDG theONE Touring Frame – Haze & Fog

MDG theONE Touring Frame – Haze & Fog

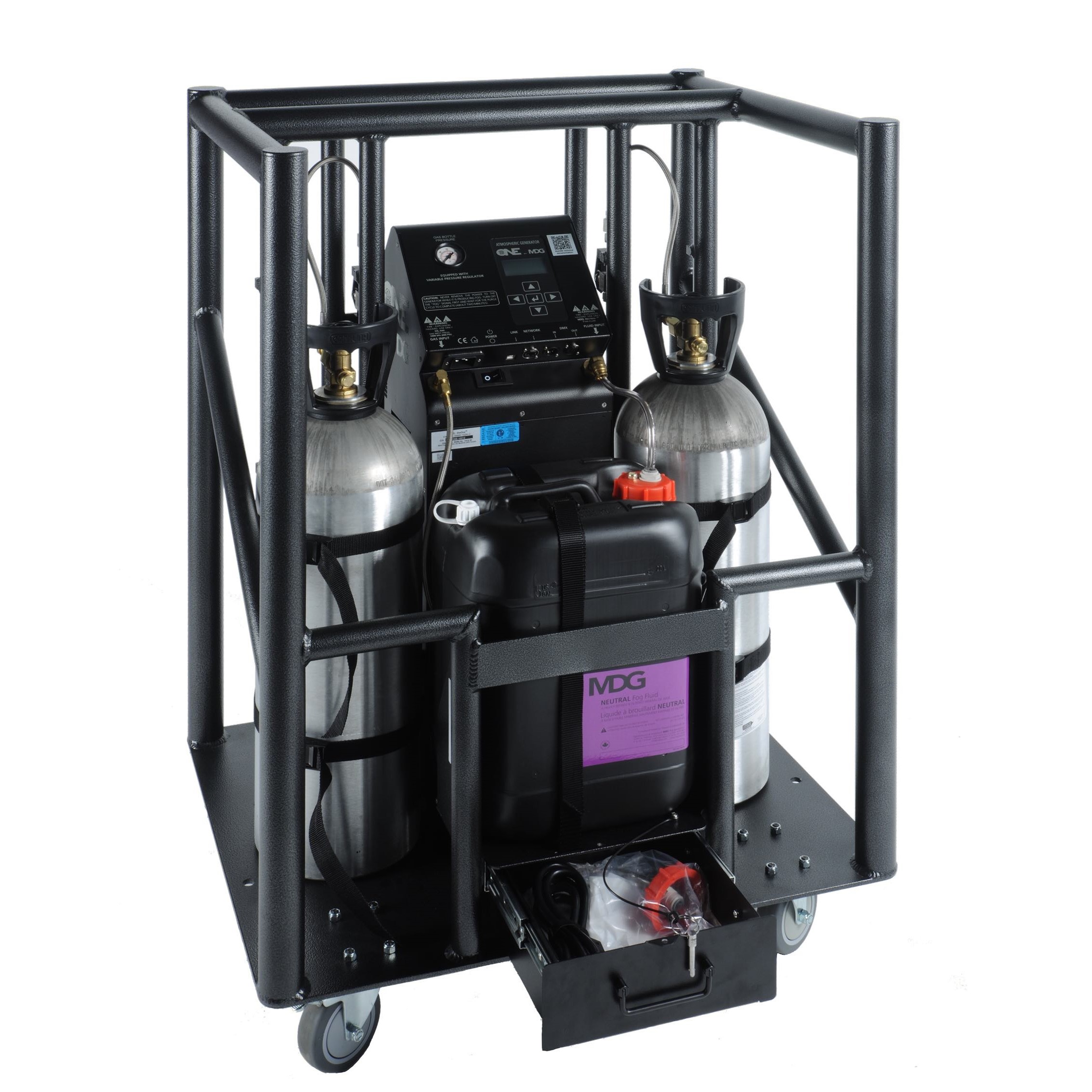

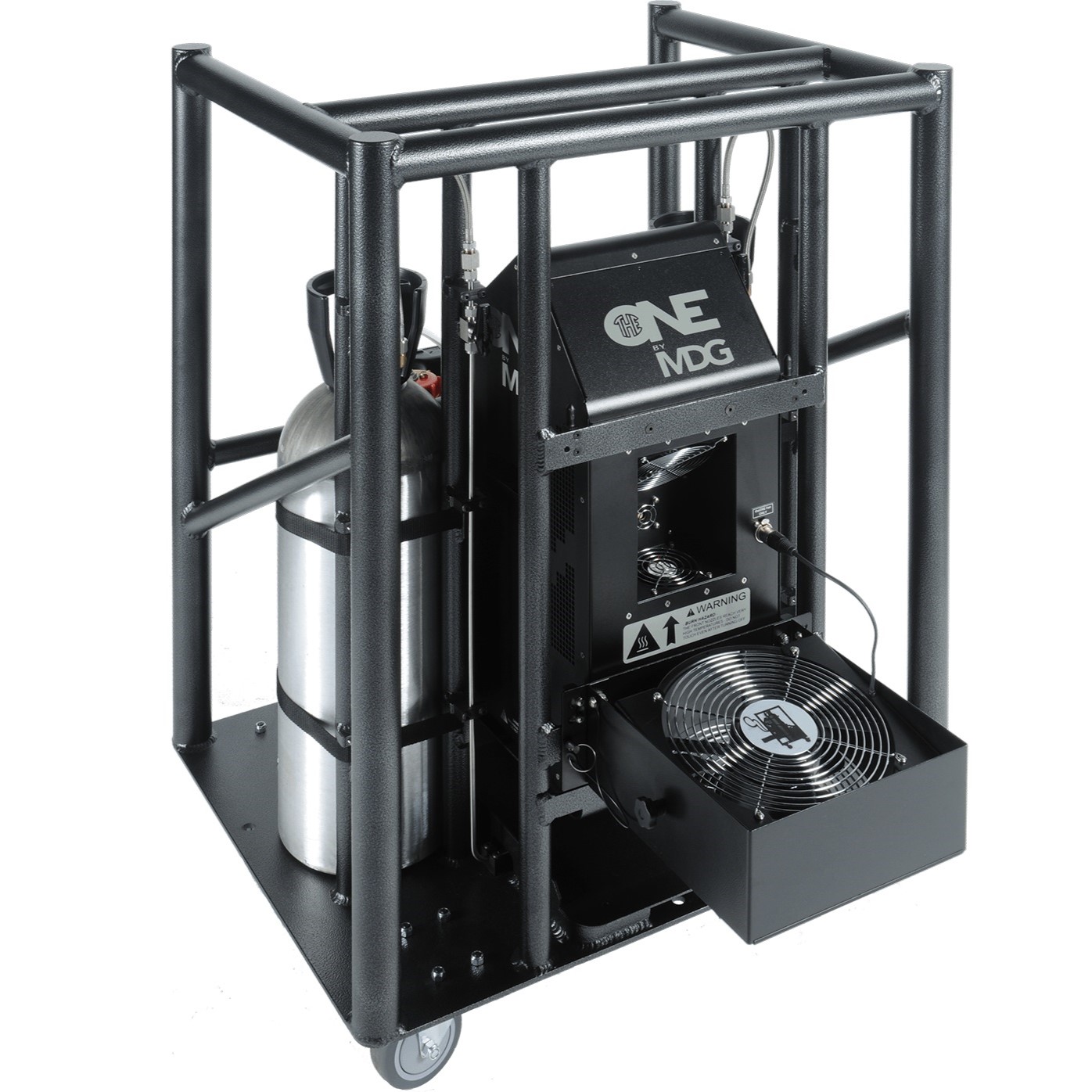

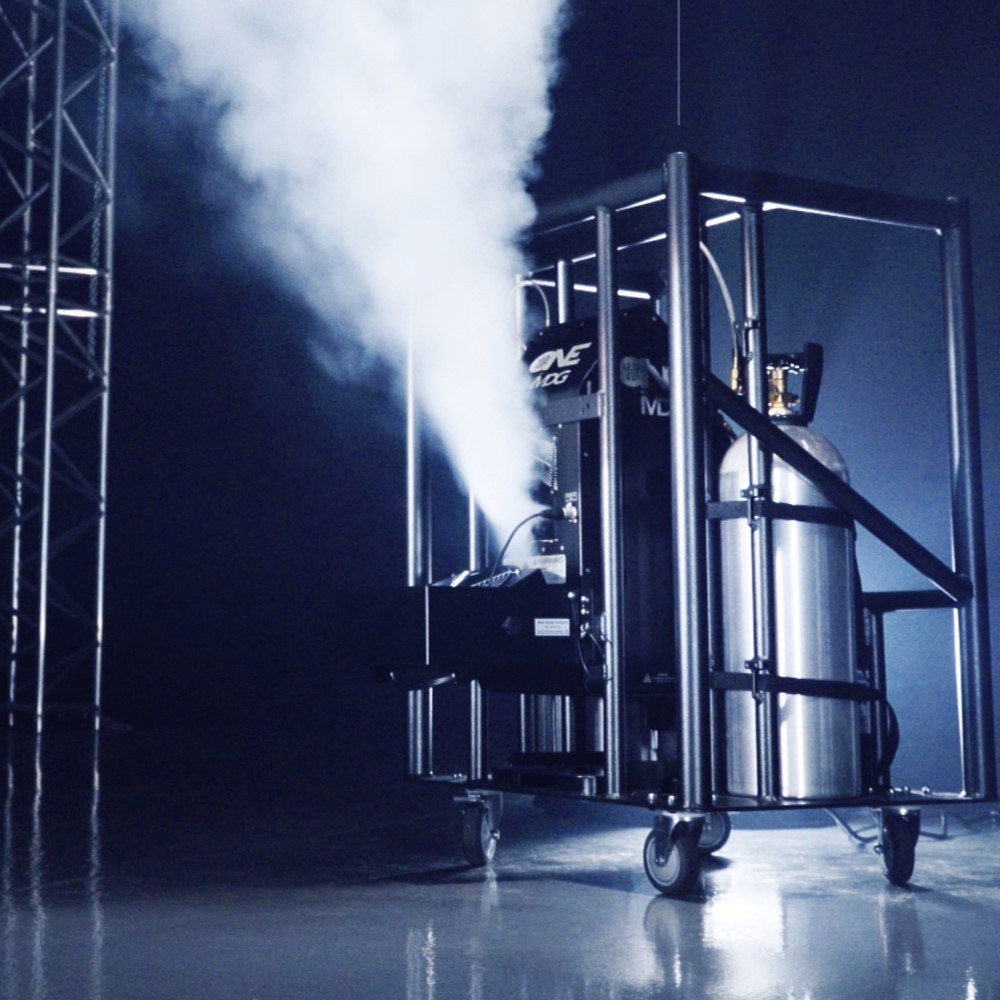

theONE™ Atmospheric Generator by MDG is an award-winning, all-in-one fogger and hazer designed for touring and very large event spaces. Designed by MDG, this high-quality machine can seamlessly switch between haze and fog modes with a 100% duty cycle. Equipped with an automatic refill system, the unit will refill its internal fluid reservoir from an external 20L fluid container. This machine has an exceptional run time of 308 hours of haze and 20 hours of fog from its 20L fluid container. The gas bottle will need to be changed at 50 hours for haze and 15 hours for fog but this can be done during operation without interruption of fog or haze generation. theONE is housed within a robust aluminium touring cradle/frame, which contains the generator, an external dual-position, an adjustable fan and a convenient tool drawer. It also accommodates the 20L fluid container and, 9 kg CO2 or N2 gas bottles. The cradle is also designed for rigging, stacking and rolling, making it extremely versatile.

Specifications:

Haze Mode
Fluid consumption 65ml at 30 psi per hour / max output
Gas consumption (CO2 or N2) 0.35 kg per hour / max output
Automatic Purging System Yes
Particle size 0.5 – 0.7 micron
Total running time 308 hours (50 hours – gas) when using the 20L container, running at full intensity
Fluid type MDG Neutral



Fog Mode
Fog volume 100 m3 per minute / max output
Fluid consumption 1 litre at 40 psi per hour / max output
Gas consumption (CO2 or N2) 1.16 kg per hour / max output
Automatic Purging System Yes
Particle size 0.5 – 0.7 micron
Total running time 20 hours (15 hours – gas) when using the 20L container, running at full intensity
Fluid type MDG Neutral
