Pharos TPC

Pharos TPC

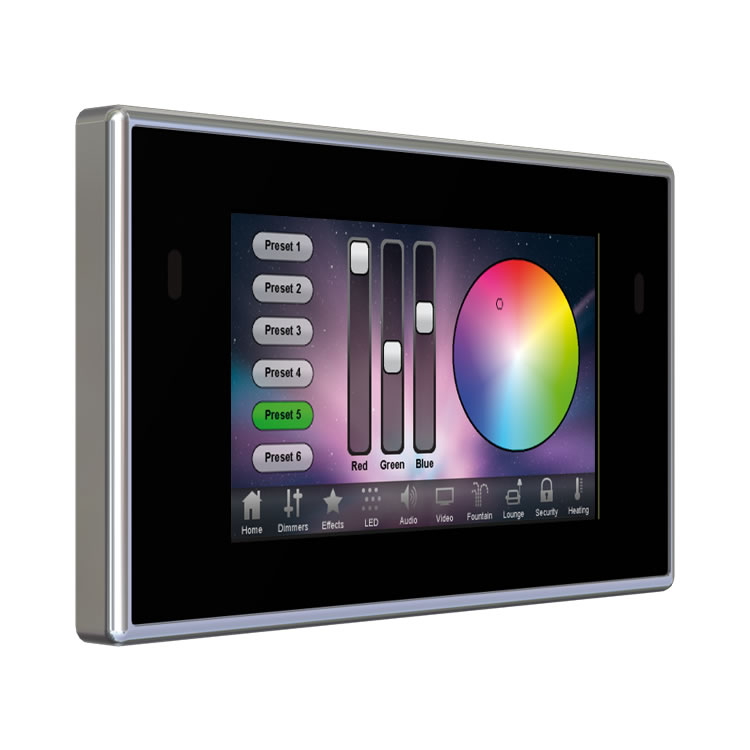

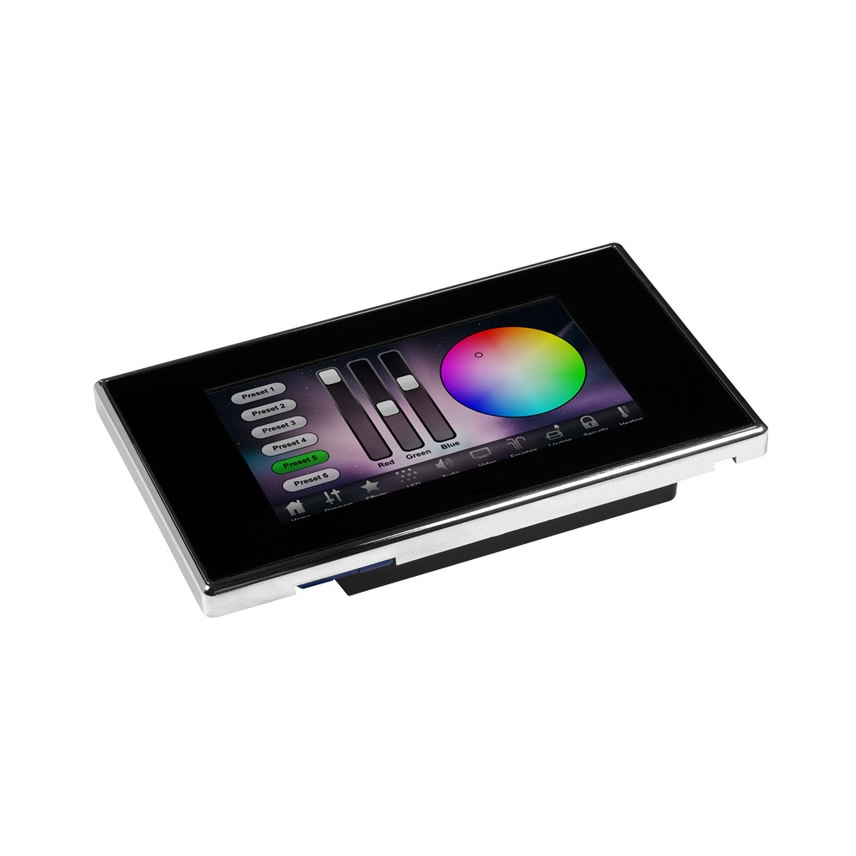

The Pharos TPC (Touch Panel Controller) is an elegant lighting controller with a customisable, 4.3″ capacitive touch screen, 512 channels of eDMX output and vast interfacing potential, all over a single Power-over-Ethernet (PoE) network connection. TPCs are available in a range of different coloured bezels and overlays.

Put Pharos in the room with the award winning Touch Panel Controller’s sleek styling, advanced lighting playback engine and fully integrated user interface.

With control of playback selection and lighting levels at your fingertips you can gracefully transition between scenes, timelines, effects and pixel-mapped media. The customisable touch screen user interface lets you create multiple pages of controls, configure their appearance and get immediate visual feedback.

  • Realtime control of playback selection and lighting levels – gracefully transition between scenes, sequences, effects and pixel-mapped media
  • Customizable touch screen user interface – create multiple pages of controls and configure their appearance and visual feedback
  • Triggering and show control via touch screen, learning IR sensor, temperature sensor, ambient light sensor, proximity sensor, Ethernet, realtime and astronomical clocks
  • Extend the TPC’s hardware interfaces with the Pharos EXT, which includes a DMX output and a mains power supply
  • Conveniently and intuitively programmed and simulated in Designer on a PC or Mac. Graphical user interface created in Interface Editor and all uploaded over Ethernet
  • One universe of eDMX output directly to KiNet, sACN, ArtNet and Pathport fixtures. Optional remote devices for DMX, DALI, linear timecode, audio, MIDI, serial ports, digital/analog inputs and relay outputs

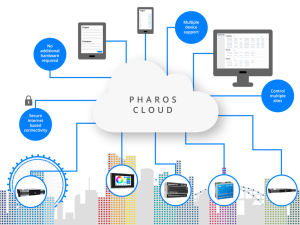

  • Remote management and control via built-in web server. Monitor, trigger and reprogram units remotely and securely over the Internet using a web browser or Pharos Installation Manager
  • LPCs & TPCs seamlessly network together for synchronized control on larger systems with multiple controllers
  • Elegant wall mounting, solid state, instant-on, lighting control solution
  • Available with a black gloss overlay on a bright nickel bezel. Can also be ordered in white overlay on nickel bezel, black overlay & bezel, white overlay & bezel or cream overlay & bezel

Additional information

Dimensions 146 × 86 × 32.5 mm
