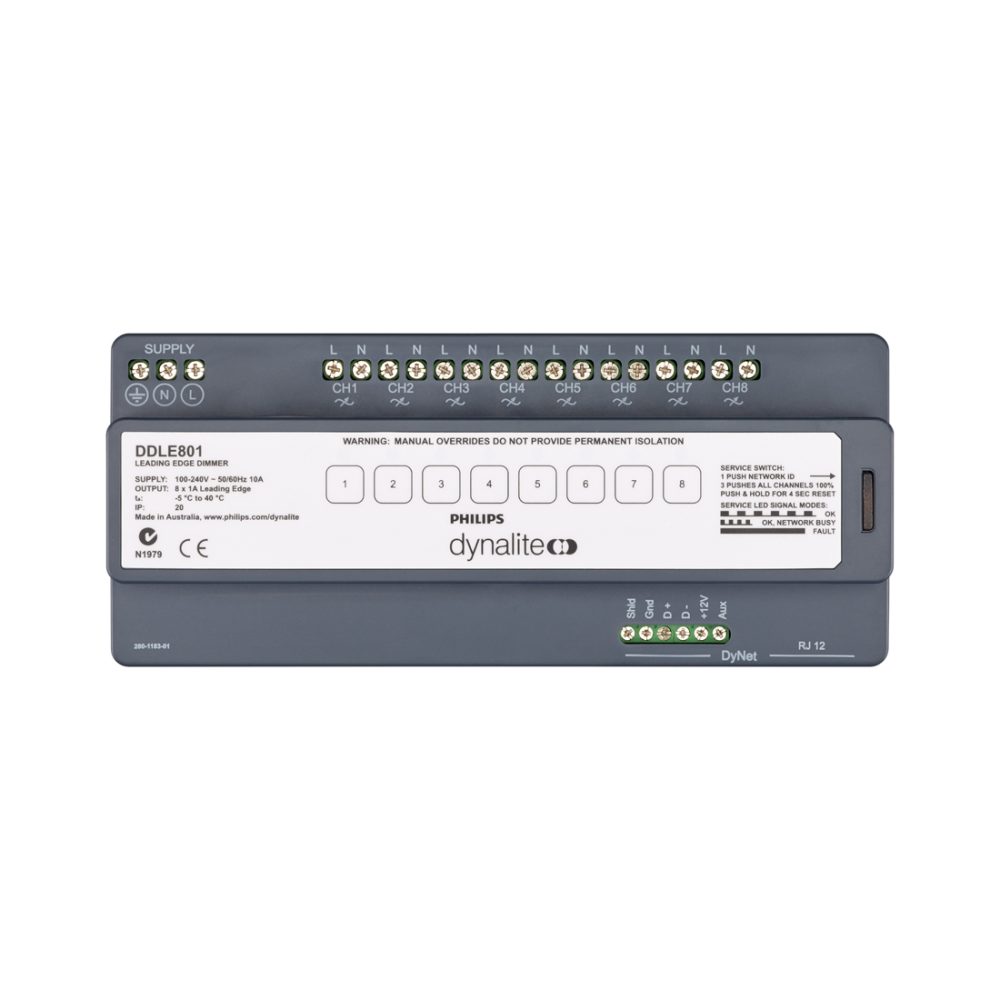

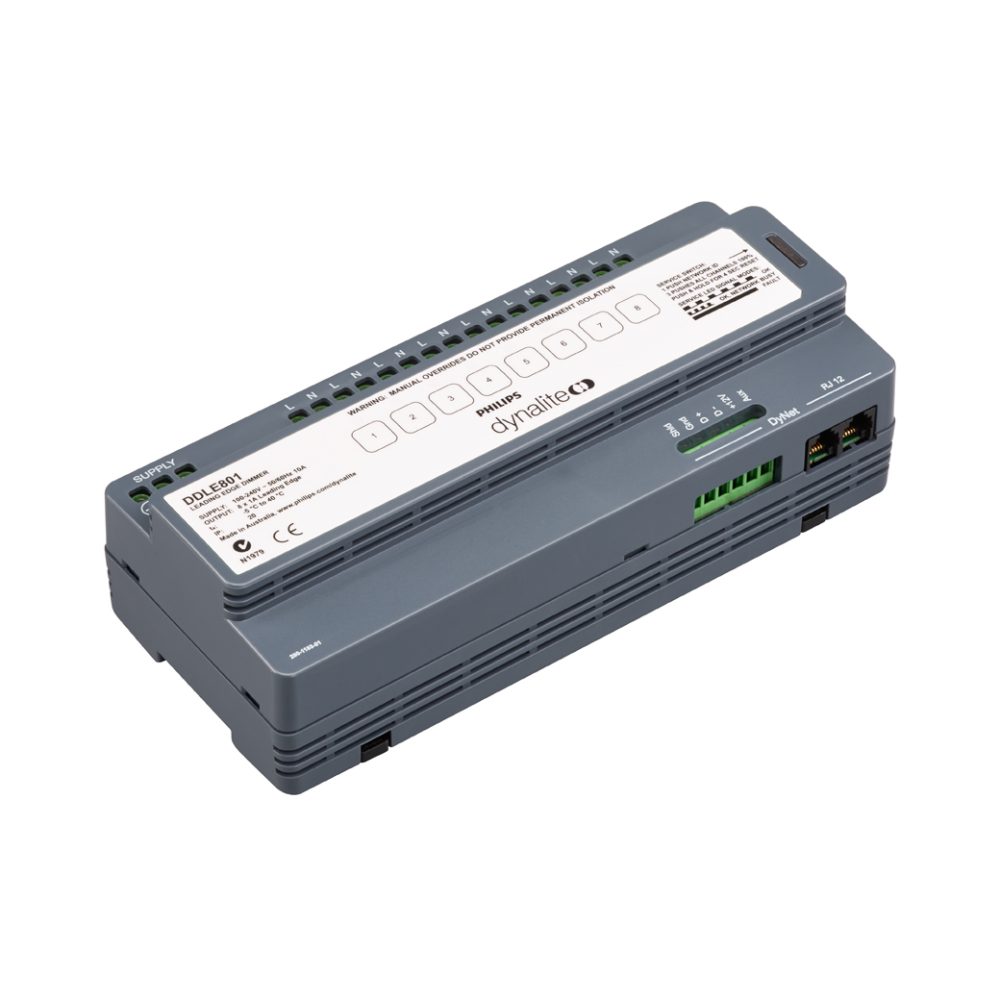

Philips Dynalite Leading Edge Dimmer Controller 8Ch (DDLE801)

The Philips Dynalite DDLE801 supports eight channels of leading edge dimming at 1 A per channel. It is suitable for use with incandescent lighting, as well as leading edge compatible magnetic and electronic transformers. Advanced LED dimming technology makes the unit particularly suited to residential, retail and hospitality applications.

• Active Load technology on each channel – Dramatically improves LED dimming stability through detection of supply fluctuations and application of control compensation.
• Soft start and voltage regulation technologies – Protects lamps from over voltage and dramatically improves lamp life, reducing maintenance costs.
• Superior internal drive componentry tuning – Removes issues of ‘clipping’ that are normally associated with leading edge dimmers controlling LED lamps.
• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
