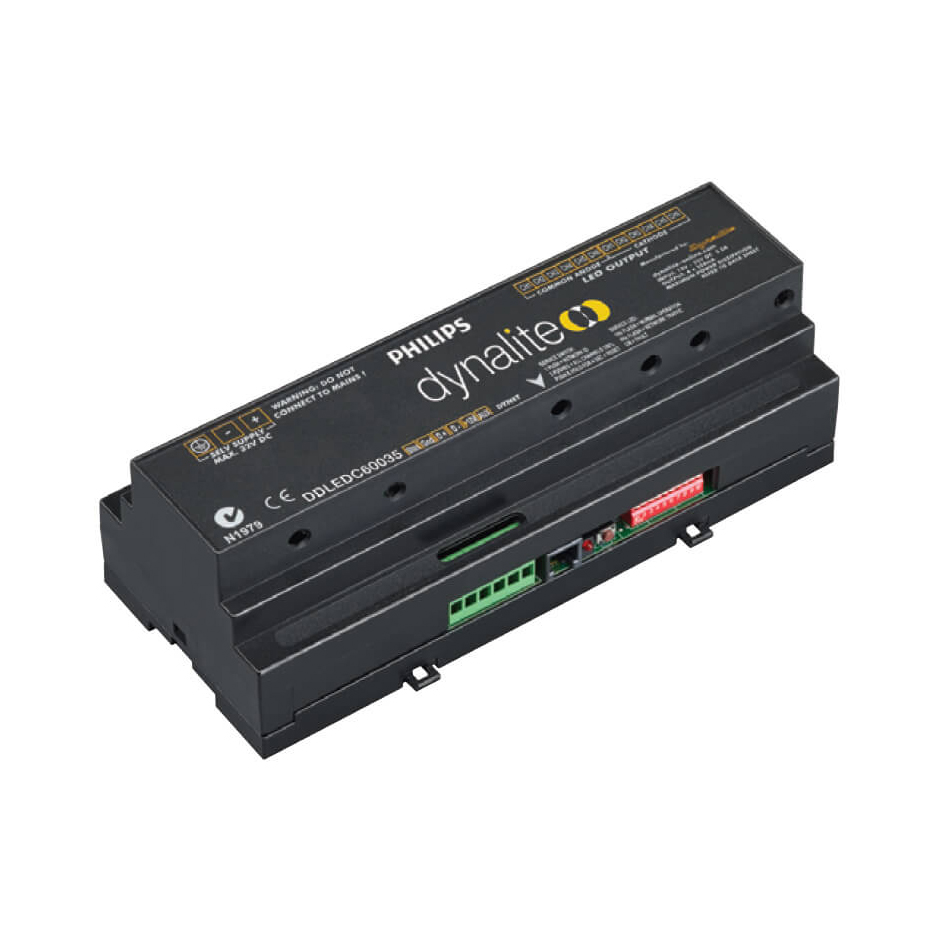

Philips Dynalite PWM Controller – current-mode output (DDLEDC60035)

** The DDLEDC60035 has been discontinued. **

The DDLEDC60035 is designed to control LED loads in decorative architectural lighting applications where creative color mixing and sequencing is required. The controller provides six pulse width modulated common anode current mode outputs, suitable for directly driving 350mA nominal current rated high intensity LED sources. Incorporating internal current regulation, the controller is designed to directly operate series connected LED arrays without the need for any additional circuit devices. The device is supplied with a DIN-rail mountable housing, designed for installation within a switchboard or suitable electrical enclosure. The DDLEDC60035 is DMX512 compatible and is suitable for the high chase speeds found in display lighting.
