Tridonic LCA 150W 24V

Tridonic LCA 150W 24V

  • NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
  • Dimmable 24 V constant voltage LED driver for flexible constant voltage strips

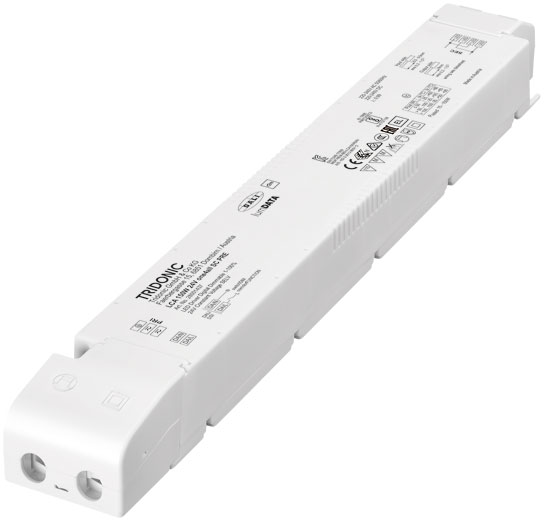

  • Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)

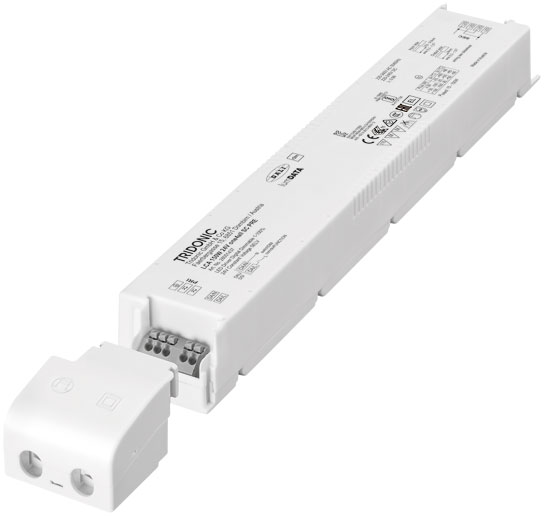

  • The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
  • One4all interface and ready2mains enable different dimming options
  • Dimming range 1 to 100 %
  • No additional external dimmer is needed
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • Nominal lifetime up to 50,000 h

Typical applications

  • Cove lighting, facade accent lighting, ceiling integration

Technical details

  • 24 V, 150 W

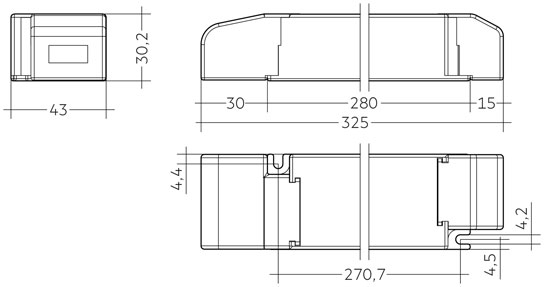

  • Small design (325 x 43 x 30 mm) with stretched-compact strain relief
  • Small cross section

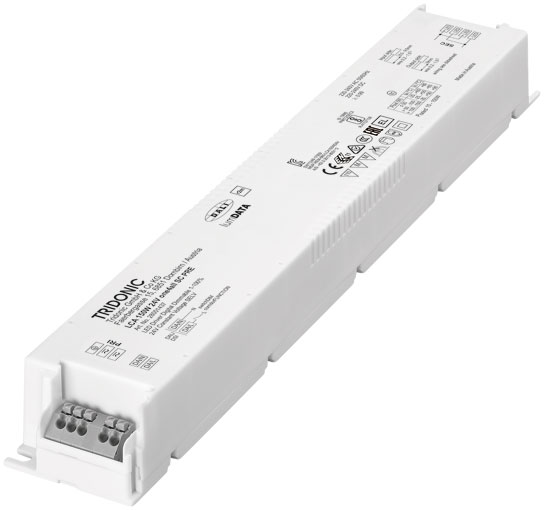

  • Push terminals for simple wiring
  • Output terminals (+/–) equipped twice for more flexibility in the application

Interfaces

  • one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
  • ready2mains (configuration and dimming via mains)
  • Terminal blocks: 45° push terminals

System solution

  • Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
  • Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
  • In connection with Flex accessories wire to PCB plug
  • Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly
